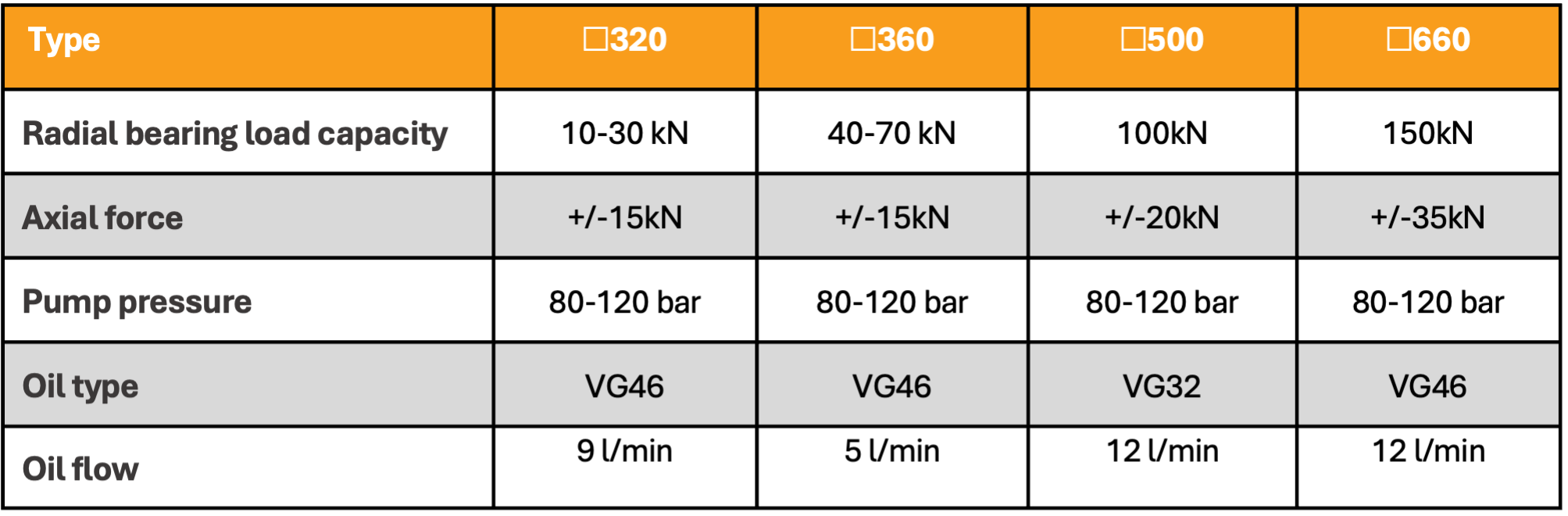

Hydrostatic test spindle​​

Special features of a hydrostatic spindle for bearing test machines

• Without rotation to measure friction under load
• With rotation or swivel to prevent wear
• Fixing the outer ring or the inner ring to prevent rotation
• For vehicles with a radial force of 10 or 20 kN
• For trucks with a radial force of 70, 100 or 150 kN
• With drive on the rotation side,
  without drive on the side for torque measurement

Double hydrostatic spindle for
Bearingtesting machines

• The outer spindle rotates
• No friction between inner and middle shaft
• Torque measurement between center and inner shaft
• For vehicles with a radial force of 10, 20 or 40 kN
• With drive on the rotation side, without drive on the torque measurement side

​
